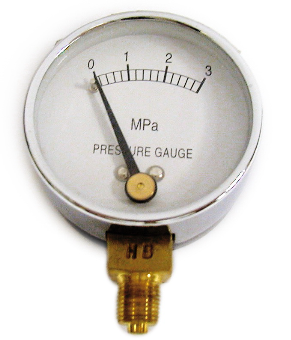

Movementless Gauge
Type:716

Application
Specially designed to resist pulsation, shock & vibration atmospheres.   These gauges are widely used on high pressure hydraulic equipment and burner machine.
Size
2”
Accuracy
±5% of Span
Ranges
20 – 100 Bar
With dial arc of 50º
Operating Temperature
Ambient:  -4℉ to 140℉ (-20℃ to 60℃)
Media:   max. 158℉ (+70℃ )


Standard Feature:

Connection
Material: Copper Alloy
Low Mount (LM)
1/4” NPT Limited to wrench flate area
Bourdon Tube
Material: Spiral Copper alloy
Dial
Gavalume steel, white background
Pointer
Aluminum, black finish
Case
Polypropylene
Ring
Chrome plated steel friction ring
Movement
None
Window
Polycarbonate


Specification Chart1

Order Options(min. order may apply)
Customer dial layout
Special connections limited to wrench flate area
Chrome plated connection
