Miniature Gauge systems
Type:132&215&216&715&717

Application
To be specially designed to conserve space.  These gauges are widely used on FRL, mini hand-pump, equipment where fitting space is limited.  Air service is the most common application.
Standard Feature

Operating Temperature

Ambient:  -4℉ to 140℉ (-20℃ to 60℃)
Media:   max. 158℉ (+70 )


Standard Feature:

Connection
Material: Copper Alloy
Center Back Mount(CBM)
Bourdon Tube
Material: Copper alloy
Movement
Copper Alloy


Order Options(min. order may apply)
Customer dial layout
Special connections limited to wrench flate area
Chrome plated connection
Other pressure scales available: Bar, KPa, MPa, kg/cm2 & dual scales

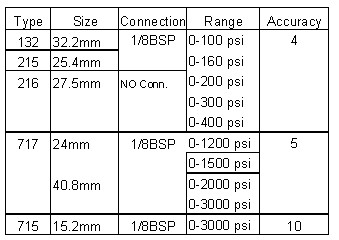

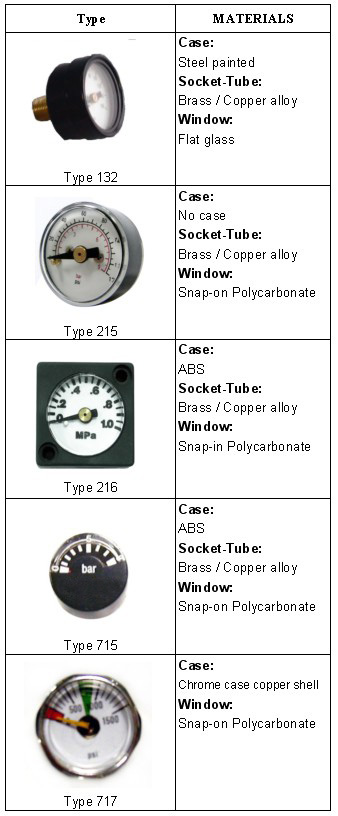

Specification Chart1 Specification Chart2 Specification Chart3
Specification Chart4 Specification Chart5
