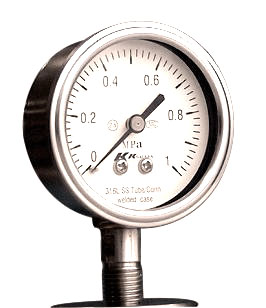

All Stainless Steel Gauge
Type:611

Application
The sturdy and rugged design make them most suitable for use in all types of Industries like chemical, petrochemical, pharmaceutical, food & beverages and power industries. They have a fillable version with dampening liquid to facilitate usage in vibration zones to avoid damage. The welding of case/socket adds further strength in the construction. These instruments work under most severe operating conditions due to environment and service.  Various versions are available depending upon specific needs.
Size
63mm
Accuracy
±1.5% of Span for 63mm
Ranges
30”Hg & above 15psi to 15000psi
or other equivalent units of pressure or vacuum range.
Operating Temperature
Ambient:  -4℉ to 140℉ (-20℃ to 60℃)
Media:   max. 185℉ (+85℃ )



Standard Feature:

Connection
Material: 316L stainless steel wetted to case
Lower mount (LM)
1/4” NPT Limited to wrench area
Bourdon Tube
AISI 316 stainless steel
Dial
Aluminum, black graduation on white background
Pointer
Aluminum, black coloured
Case & Ring
Drawn 300 series stainless steel
Permanent crimped ring
Movement
316 stainless steel
Window
Tempered glass, sealed to case with Buna-N gasket


Specification Chart1

Order Options(min. order may apply)
SST press fit restrictor
Customer dial layout
Special connections limited to wrench area
Other pressure scales available: Bar, KPa, MPa, kg/cm2 & dual scales
Glycerin, silicone & mineral oil for case filling
Laminated safety glass available
