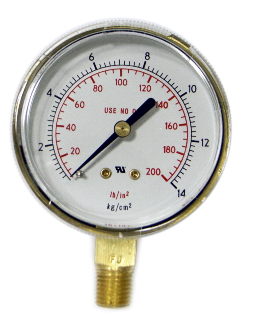

Compressed Gas Gauges
Type:511

Application
Fluid medium which does not clog connection port. For indicating cylinder pressure of compressed non-corrosive gases. Typically welding, cutting and related processes.  Any medium which oxidizes with oil based materials. Cleanliness is in accordance with Level 4 of ANSI B40.1-1985.
Size
2" and 2.5"
Accuracy
±2.5% of Span (Grade B ANSI B40.1)
Ranges
30"Hg and above 15psi up to 6000psi
Or other equivalent units of pressure or vacuum range.
Operating Temperature
Ambient:  -4℉ to 140℉ (-20℃ to 60℃)
Media:  max. 158℉ (+70℃)


Standard Feature:

Connection
Material: Copper alloy
Lower mount (LM)
1/8", 1/4" NPT limited to wrench flat area
Bourdon Tube
Material: Copper alloy
(Low copper content for use with acetylene)
Movement
Copper Alloy
Dial
Gavalum steel, white background with black markings. "Use No Oil" in red on dial.
Pointer
Aluminum, black finish
Case

Drawn steel, gold painted finish, supplied with pressure relief in back of case
Window
Snap-On polycarbonate


Specification Chart1

Order Options(min. order may apply)
Brass threaded or press fit restrictor
Special colors / chrome-plated case
Special connections limited to wrench flat area
Nickel or chrome plated connection
Customer dial layout
Other pressure scales available: Bar, kPa, MPa, kg/cm2 & dual scales
